SP9-EX Explosion Proof Limit Switches

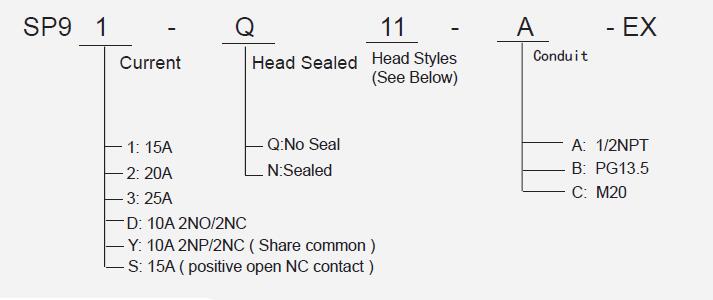

Features: *Compact and rugged Aluminum housing *Large wiring enclosure *High precision switch *High repeatability of switching point *Long service life *Large breaking power *Conduit opening available in: M20: suffix -C 1/2NPT: suffix -A

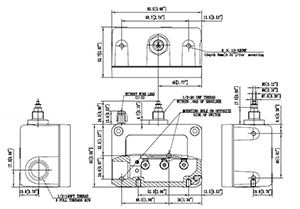

Installation dimensions:

Specifications: Operating Speed: 0.02mm-0.5m/sec Insulation Resistance: >100MΩ@500V DC Contact Resistance: <25mΩ (initial value) Rated Current/Voltage: SP91 15A 125/250/480VAC, 1/8HP 125VAC, 1/4HP 250VAC SP92 20A 125/250/480VAC, 1/8HP 125VAC, 1/4HP 250VAC SP93 25A 125/250/480VAC, 1/8HP 125VAC, 1/4HP 250VAC SP9D/SP9Y 10A 125/250VAC, 2A 480VAC, 1/2HP 125/250VAC SP9S 15A 125/250/480VAC, 1/2HP 125/250VAC Dielectric Strength: 2200VAC for 1 min Service Life: Mechanicaly 10000000 (operations) Electrically 1000000 (operations) Operating Temperature: -40~+70℃ (-40~158°F) Vibration Resistance: 25gn(10-150 Hz, 11ms) per IEC60068-2-6 Shock Resistance: 60gn(9ms) per IEC60068-2-27 IP Rating: IP60/IP65 Hazardous Location: NEMA 7, Class I, Group C and D NEMA 9, Class II, Group E, F and G Ex dIIB + H2 T6 Category II 2G

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SP91-Q31-A-EX View Details
